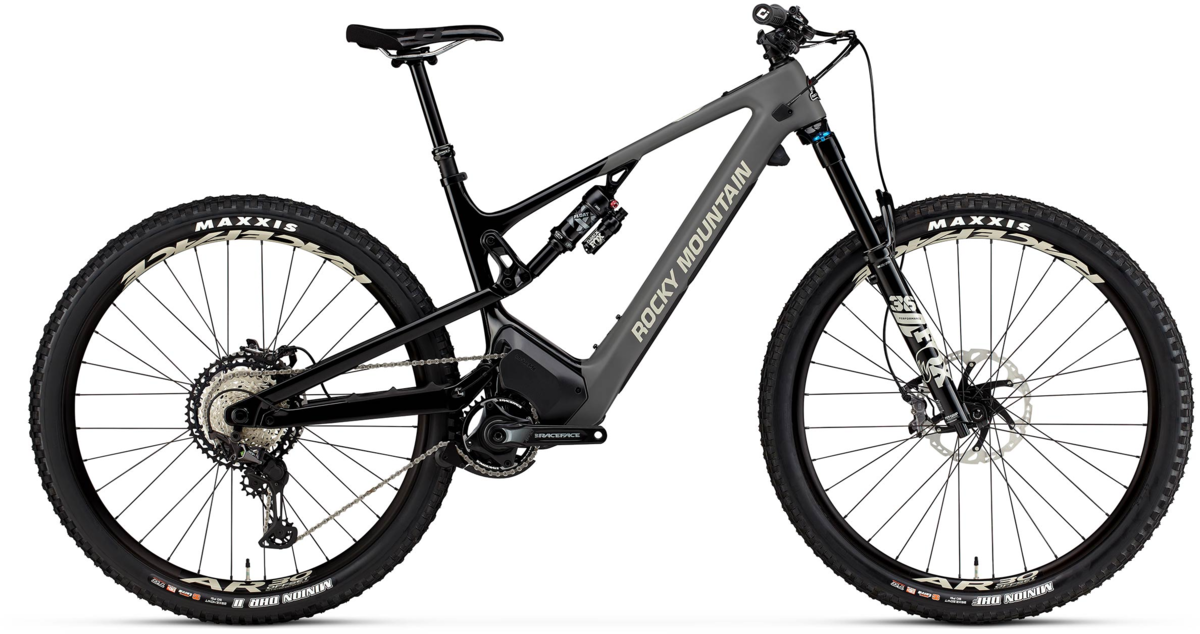

Rocky Mountain Instinct Powerplay C70 Shimano
$5,999.00 - $9,499.00
Details
The Instinct Powerplay is built for exploration. Versatile geometry, dialed kinematics, and powered by our Dyname 4.0 drive system, you’ll be riding bigger days than ever before.
| SM | MD | LG | XL | |
|---|---|---|---|---|
| Top Tube Horizontal (mm) | 585 | 610 | 638 | 671 |
| Head Tube Angle (deg) | 64.2 | 64.2 | 64.2 | 64.2 |
| Head Tube Length (mm) | 100 | 100 | 110 | 125 |
| Seat Tube Angle (deg) | 76.2 | 76.2 | 76.2 | 76.2 |
| Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
| Rear Centre (mm) | 439 | 439 | 439 | 439 |
| Bottom Bracket Drop (mm) | 42 | 42 | 42 | 42 |
| Reach (mm) | 432 | 457 | 482 | 512 |
| Stack (mm) | 624 | 624 | 632 | 646 |
| Standover Height (mm) | 819 | 818 | 817 | 818 |
| Wheelbase (mm) | 1201 | 1226 | 1256 | 1292 |
Specs
| Frame | SMOOTHWALL™ Carbon | Integrated Display | Mid-High Pivot Smoothlink Suspension System | Press Fit BB | RIDE-4™ Adjustable Geometry + Suspension Rate | 140mm Travel. SMOOTHWALL™ Carbon Rear Triangle |
|---|---|
| Fork | Fox 36 E-MTB Float EVOL GRIP Performance 150mm | 44mm Offset |
| Rear Shock | Fox Float X Performance | Sealed Bearing Eyelet | 20x8mm F Hardware | All Sizes = 210x55mm | Size-Specific tune in FAQ |
| Rims | Race Face AR 30 | 32H / Tubeless Ready - Tape / Valves Incl |
| Hubs |
Front Hub: Rocky Mountain SL Sealed Boost 15mm Rear Hub: DT Swiss Hybrid 370 Boost 148mm | 18T Star-Ratchet |
| Spokes |
Front: DT Swiss Champion 2.0 Rear: DT Swiss Alpine 2.3/2.0 |
| Tires |
Front: Maxxis Minion DHF 2.5 WT 3C MaxxTerra EXO+ Tubeless Ready Rear: Maxxis Minion DHR II 2.4 WT 3C MaxxTerra EXO+ Tubeless Ready |
| Bottom Bracket | Shimano SM-BBMT500 |
| Crankset | Race Face Aeffect Cinch 34T | 24mm Spindle | Crank Length: SM - MD = 165mm | LG - XL = 170mm |
| Shifters | Shimano XT |
| Rear Derailleur | Shimano XT |
| Cassette/Freewheel | Shimano XT 10-51T |
| Chain | Shimano M8100 |
| Brakes | Shimano XT Trail 4 Piston | Metal Pads |
| Handlebars | Rocky Mountain AM Carbon 780mm |
| Tape/Grips | ODI Elite Pro Lock On |
| Stem | Rocky Mountain 35 AM | 5° Rise | All Sizes = 40mm |
| Headset | FSA Orbit NO.57E ZS44|56 | Durable Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race |
| Seatpost | Race Face Turbine R (by Fox) Dropper 30.9mm | SM = 125mm | MD = 150mm | LG = 175mm | XL = 200mm |
| Saddle | WTB Volt Race 142 |
| Accessories & Extras | Rocky Mountain Micro Remote |
| Motor | Dyname 4.0 Mountain Bike Drive | 700W Max Power | 250W Nominal Power | 108Nm | Rocky Mountain Micro Remote | Low RPM - High Efficiency class 1 eMTB System | Designed in Canada |
| Battery | 720 Wh Removable Integrated Li-Ion | 100% Charged in 3:55 (4A) / 7:35 (2A) | 80% Charged in 2:55 (4A) / 6:05 (2A) |
| Controller/Display | Rocky Mountain Jumbotron | Drive System Customization | Battery & Assist Level | Trip | Speed | Cadence | Top Tube Integration |
| Charger | Rocky Mountain Powerplay FAST Charger V1 | 4A | 48V | Higo Deep Socket Connector | Overtimepack Compatible (Dyname 4) |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Black/Grey/Beige / Small / 29-inch | 770416469677 | B0299SM2CA | 210000007655 |
| Black/Grey/Beige / Medium / 29-inch | 770416469875 | B0299MD2CA | 210000007654 |
| Black/Grey/Beige / Large / 29-inch | 770416470079 | B0299LG2CA | 210000007651 |
| Black/Grey/Beige / X-Large / 29-inch | 770416470277 | B0299XL2CA | 210000007653 |
| Yellow/Brown / Small / 29-inch | 770416469578 | B0299SM1CA | |
| Yellow/Brown / Medium / 29-inch | 770416469776 | B0299MD1CA | 210000007652 |
| Yellow/Brown / Large / 29-inch | 770416469974 | B0299LG1CA | 210000007656 |
| Yellow/Brown / X-Large / 29-inch | 770416470178 | B0299XL1CA |
